What are Connector Pin Headers?

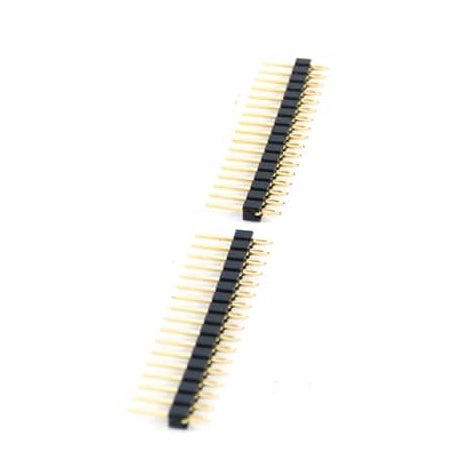

Connector pin headers are connectors that are typically used on Printed Circuit Boards (PCBs) to provide a connection between two components. They are usually a series of pins arranged in a row, with a plastic housing that holds the pins in place and provides insulation. Pin headers are available in different numbers of pins, ranging from 2 to 50 or more.
Connector pin headers are available in various types, such as single row, double row, surface mount, and through-hole mount. The choice of the type of pin header mainly depends on the application, space availability, and equipment requirements.
Uses of Connector Pin Headers
Connector pin headers are used in a wide range of applications, including computer hardware, telecommunications, automotive, medical equipment, control systems, and more. They are used to connect circuit boards together or to connect circuit boards to other devices, such as sensors, motors, and switches.
Benefits of Using Connector Pin Headers
Connector pin headers offer several benefits, including:
1. Reliable Connection
The pins on the header offer a secure and reliable connection that can withstand vibration and mechanical stress without losing the connection. The connector’s plastic housing also protects the pins from corrosion and other forms of damage.
2. Flexibility
Connector pin headers offer flexibility in terms of space-saving and compact design, which is particularly important in applications where space is limited. They are also available in both right-angle and straight configurations.
3. Easy Installation
Connector pin headers are easy to install and remove, which makes them an ideal choice for applications that may require frequent replacement, maintenance, or upgrades.
Choosing the Right Connector Pin Header Manufacturer
When choosing a connector pin header manufacturer, it’s essential to consider several factors to ensure that you get a reliable and high-quality product. Some of the critical factors to consider include:
1. Quality Control
Ensure that the manufacturer has a reliable quality control process in place to ensure that each product meets the required standards. This is particularly important, especially in applications requiring high-reliability and durability.
2. Experience and Reputation
Choose a manufacturer with a good reputation and experience in the industry. Check customer reviews, testimonials, and endorsements, and see if they’ve worked on similar projects as your application.
3. Certifications
A good connector pin header manufacturer should have relevant certifications, such as ISO-certification and RoHS compliance. This guarantees that the manufacturer follows strict quality standards and meets environmental regulations.
In Conclusion
Connector pin headers are essential components in many electronic applications, offering reliable and flexible solutions for connecting circuit boards. Choosing the right manufacturer is crucial to ensure that you get a high-quality product that meets your requirements. With the right manufacturer, you can rest assured that your application will receive a reliable, high-performance product that will last for years.
